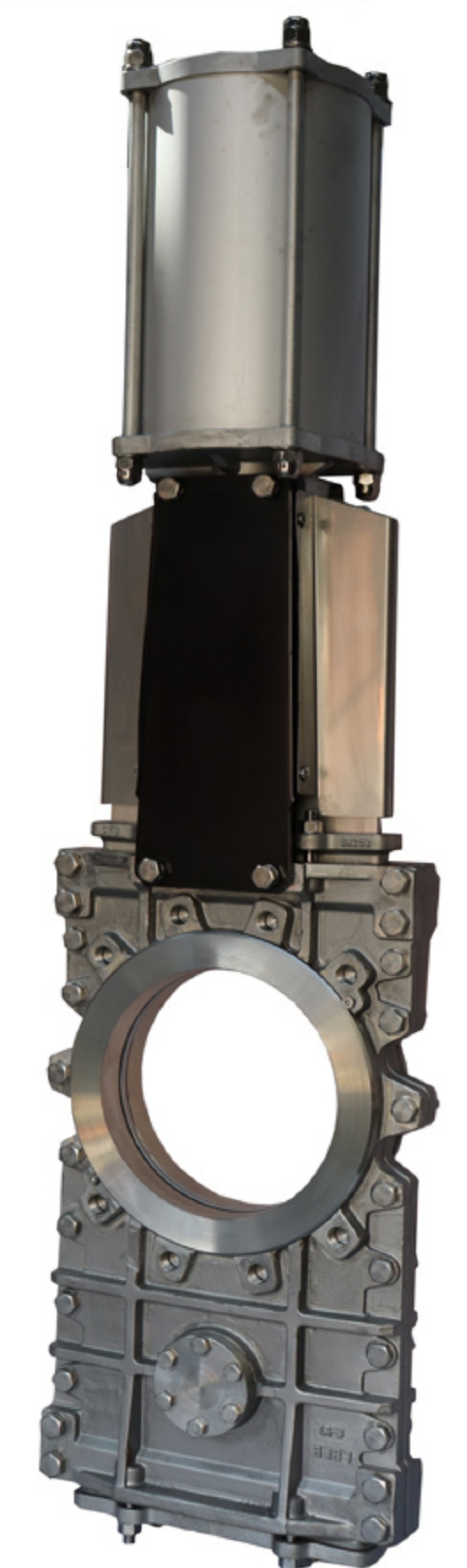

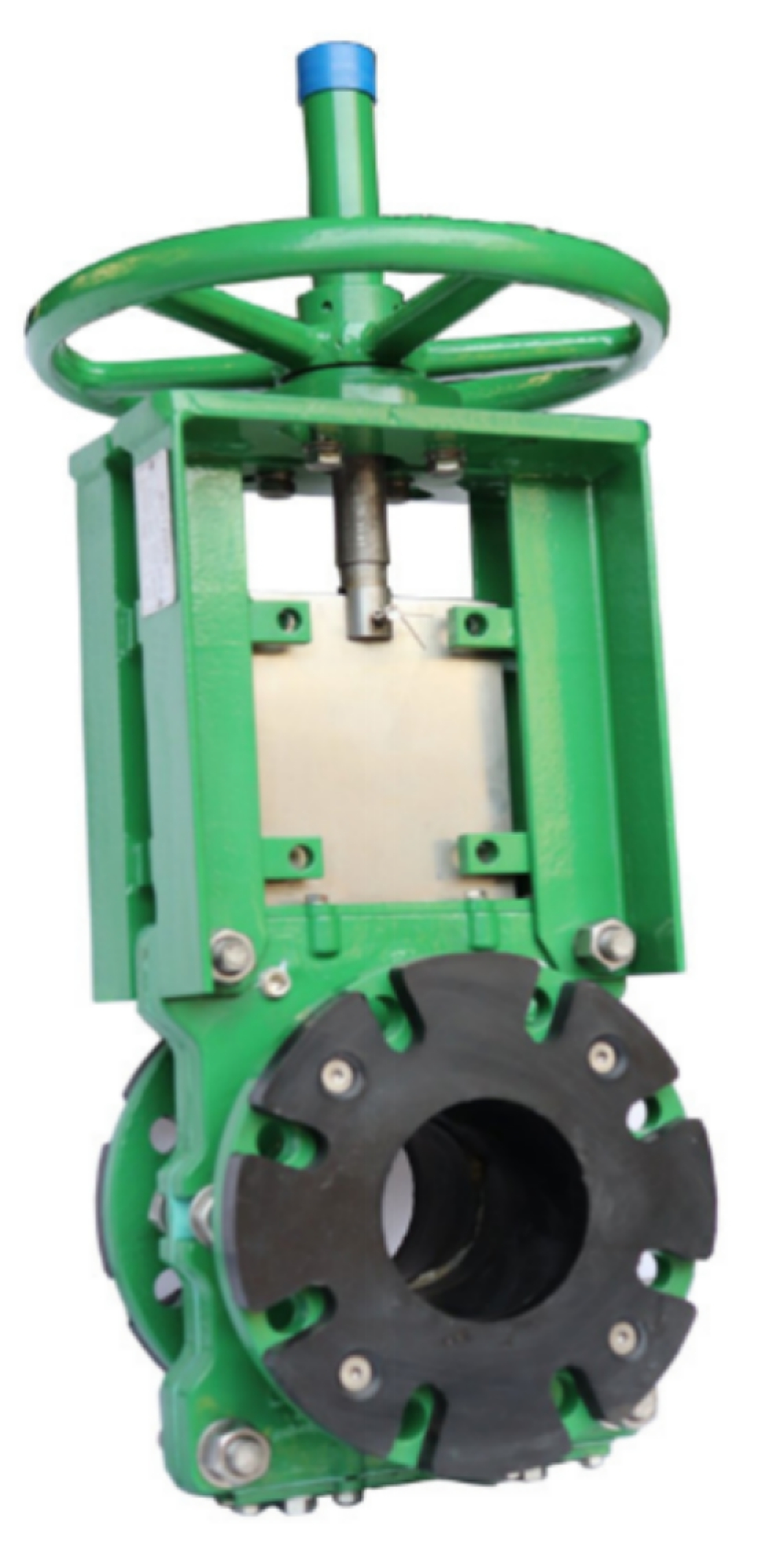

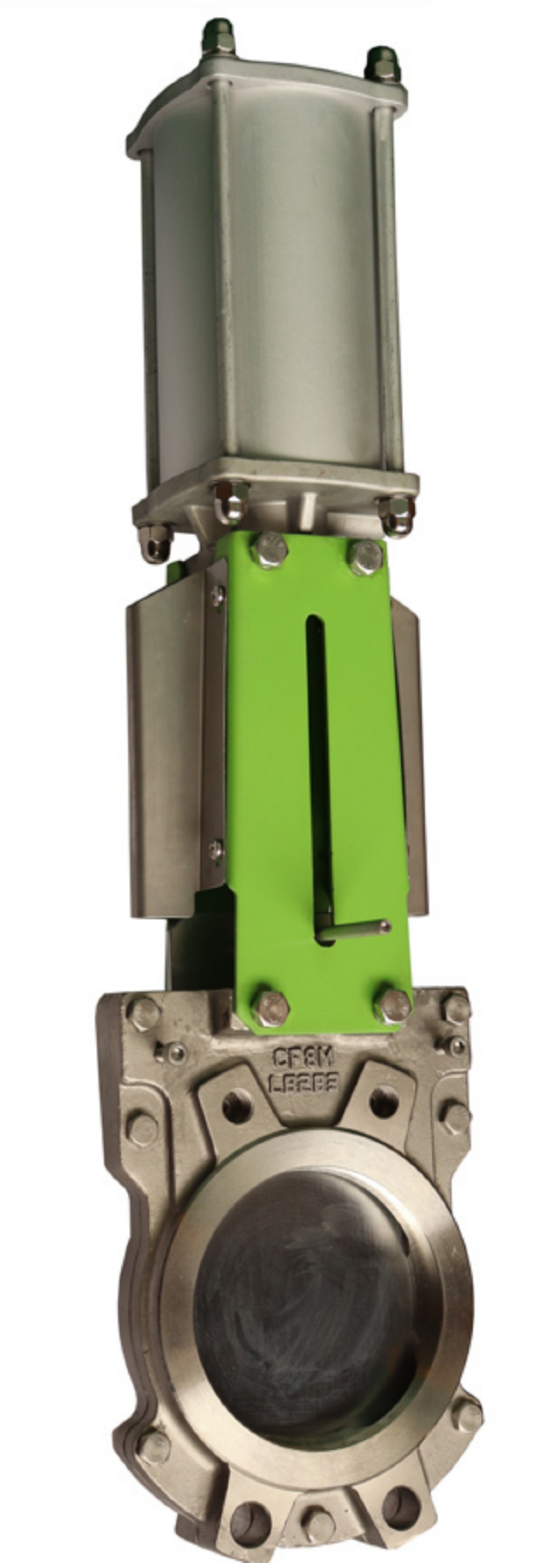

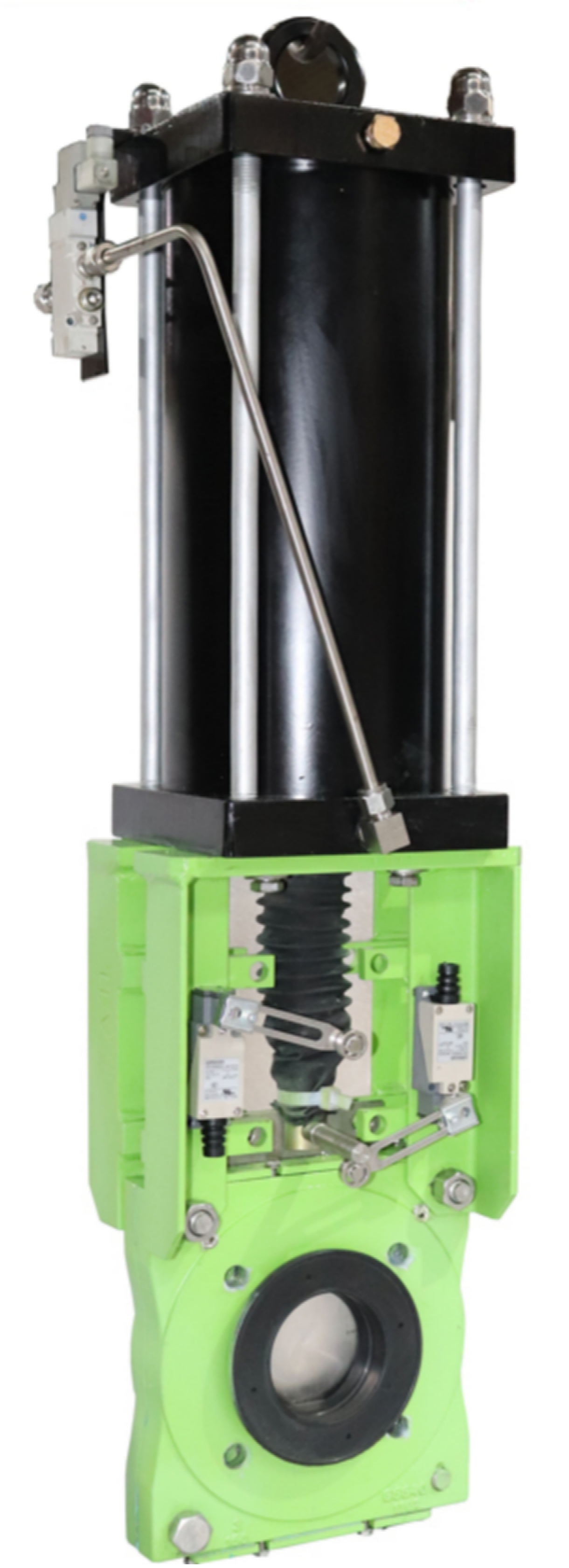

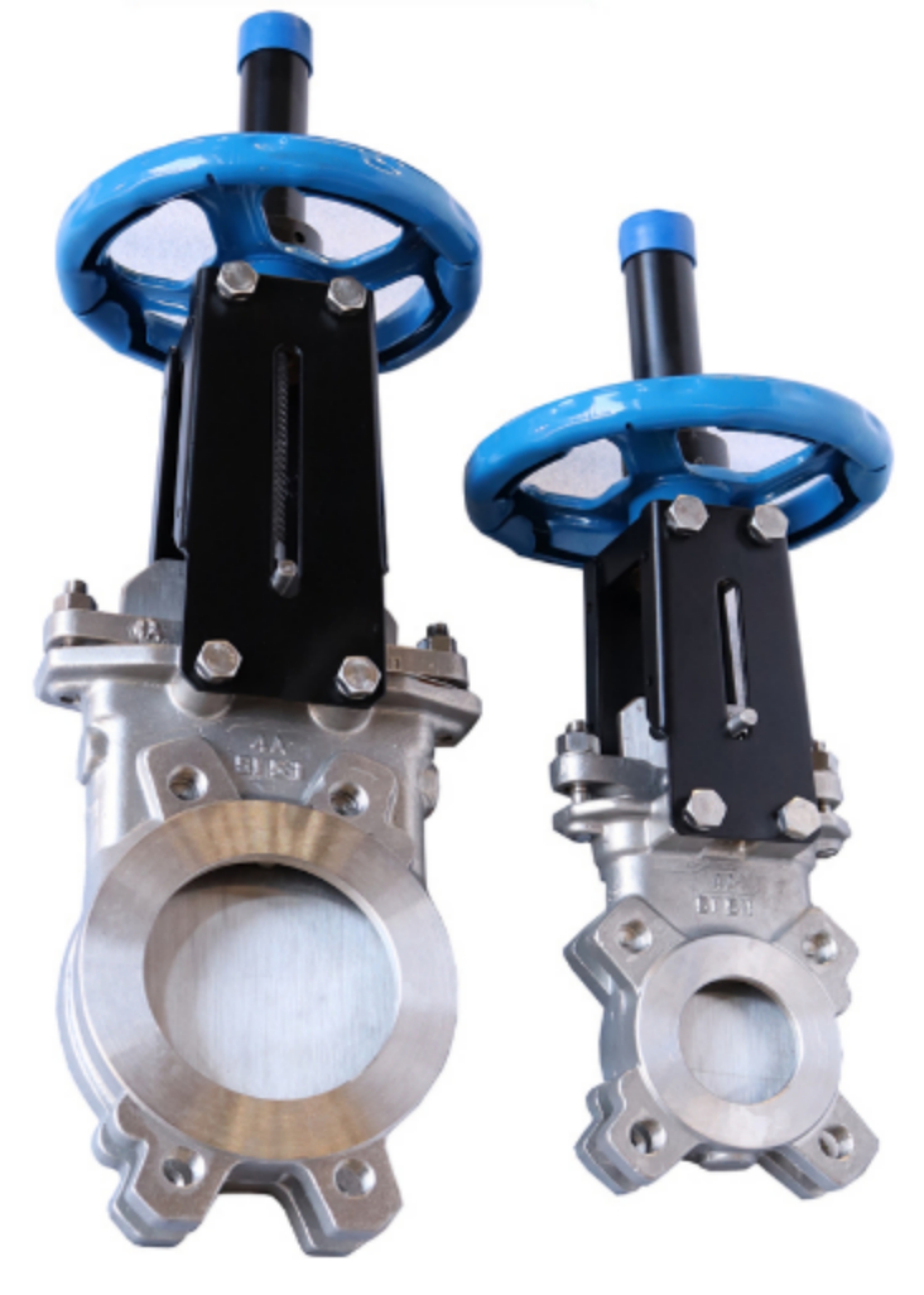

Knife Gate Valves and Slurry Knife Gate Valves
We can offer Slurry Knife Gate Valve. Includes:
1. Unidirectional Knife Gate Valves;
2. Bidirectional Knife Gate Valves;
3. Slurry Knife Gate Valves;
All is within our scope of supply, please contact a member of our sales team for more information.
Low torque, easy operation, Zero leakage packing and stuffing box design, No wear during shut off and open process, Full port, No begrime & No jam, Bar design guide blade to move smoothly, Stoper design ensure reliable sealing, To thoroughly tested and verified nuclear electrical conditions, Round shape design on both sides of the blade for enforcing body and lengthening packing life.
| Size | 2~24”(DN50~DN600) |
| Class | CL150,PN10,PN16,AS2129,JIS 10K |
| Body | Ductile Iron, Stainless Steel, Suplex, Hastelloy, Titanium |
| Trims | Knife: SS304,SS316,SS2205 Seat: NBR,EPDM,FKM,Metal TO Metal |
| Ends | Wafer; Lug; Semi-Lug; Flange |
| Rating | Up to class 150 /150Psi / PN 20 |
| End Connection | RF, RTJ, LUG, WAFER |
| Design | BS1868, API 600, API 602, BS 5352 |
| Materials | WCB, LCC, CF3(M), CF8(M), WC1, WC6, C5, C12, CF8C, CN7M |
| Special materials also available: (Super) Duplex, Monel, Inconel, Incoloy, Hastelloy, Zirconium, Titanium, Nickel Aluminum bronze | |
